Album: First attempt

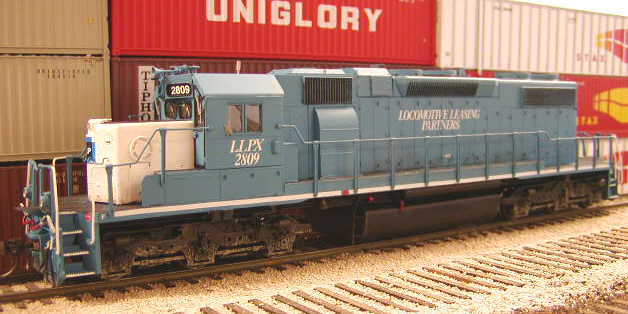

LLPX SD38-2 2809 parts list
---------------------------
Front Gyralight - Sunrise #H-108 (Note: All other LLPX units on IAIS had front Gyralight removed. Front Gyralight housing removed from all when painted.)
Rear light bracket - Detail Associates #1021 (modified)
Rear Gyralight - Detail Associates #1001
Rear headlight - Parts bin
88" short hood - Cannon #1104
Radiator fans - Cannon #1704
Dynamic brake fans - Cannon #1853
Paper air filter box - Cannon #1901 w/added lift rings formed from wire
Corrugated radiator screens - Cannon #1401
Sub-base - Cannon #1202 (not shown in construction photos)
Cab - Cannon #1501 (not shown in construction photos)
ECAFB - Cannon #1904 (not shown in construction photos)
Lift rings - Detail Associates #2206
Grab irons - Detail Associates #2202
Coupler cut levers - Detail Associates #2211
MU hoses - Kato factory parts
MU hose retainers - Formed from wire
Air hoses - Details West #267
MU cables - Details West #220
Spare coupler knuckles - Details West #196
Walkway extensions - Fabricated from Cannon #2015 safety tread stock
Ditch lights - Details West #228
Firecracker antenna - Details West #157
Horn - Parts bin, from either Atlas GP38 or Proto2000 GP38-2
EOT antenna - Parts bin
EOT antenna ground plane - Scratchbuilt
Triangular antenna - Scratchbuilt
Spark arrestors - Overland #9565 (modified)
Cab mirrors - Cut down Proto2000 GP38-2 mirrors
Cab air vent - Detail Associates #1902
Brake chain tensioner - Cannon #2152
Center brake cylinder mounting plates - Sheet styrene
Fuel tank details - Cannon #2156 and parts bin
Air tank piping - Formed from wire
Waste fluid retention tank - Hi Tech Details #6009
Steps - Cannon #2003
Windshield wipers - Detail Associates #2314

Note: At the time I shot the construction photos on page 1, I hadn't yet made the decision to go with the Cannon cab, sub-base, and ECAFB, so the Kato factory components are shown on page 1, while the Cannon parts are in the completed photos on this page.
By: Joe Atkinson
