Album: IAIS 801 - M420R

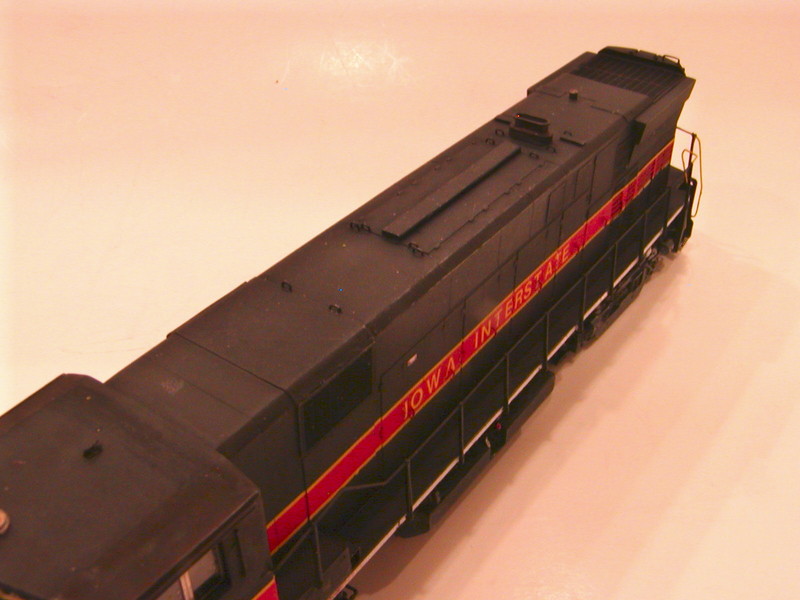

801's roof was pretty plain, so not many changes were necessary. I added the 12 lift rings, elevated styrene platform between the engine access doors, and the extended-height exhaust stack.

Here's a parts list for this project:
- Kaslo M420R shell
- Kaslo M420R handrail stanchions - second set
- Atlas U23B with AAR-B trucks
- Atlas C420 AAR-B sideframes
- LokSound #397-7240X sound decoder
- Railmaster DS1635-100 16mmx35mm 100 ohm speaker
- A-Line #29200 windshield wipers
- Cannon #2015 safety tread stock
- Detail Associates (DA) #1603 Nathan P-3/5 airhorn kit
- DA #2210 safety chain - black, 40 links/inch
- DA #6246 AEI data tags
- Details West (DW) #139 air filter set
- DW #157 firecracker antenna
- DW #172 engine & caboose step lights
- DW #196 spare knuckle and bracket
- DW #267 air hose w/bracket
- DW #275 Sinclair radio antenna - short
- DW #294 MU hoses
- Kadee #156 extended shank scale head whisker couplers
- Microscale #87-551 IAIS diesels
- Microscale #87-997 UP SD90MACs
- Model Railroader, July 1997 - M420R plans
- MV Products #300 clear 0.052" lenses
- MV Products #301 red 0.052" lenses
- MV Products #302 green 0.052" lenses
- Oddballs #743 IAIS diesels ("Work Safely" decals in stepwells)
- Proto2000 GP38-2 speed record cables
- Proto2000 GP38-2 beacon
By: Joe Atkinson
