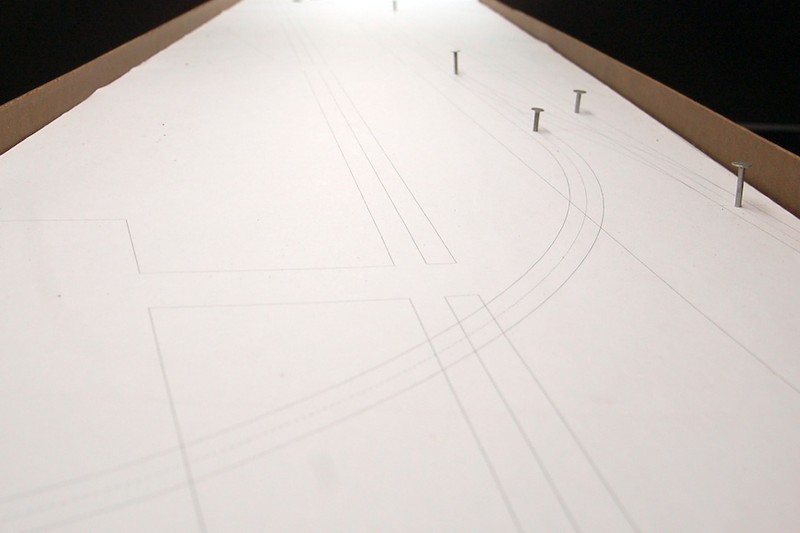

After developing the trackplan in XTRKCAD, I printed it out in 1:1 scale using a plotter printer on long rolls of paper to avoid having to stitch it together over multiple sheets. Using a dedicated CAD/CAM program ensures that everything will fit correctly and allows you to better visualize relationships between objects, including roads and structures.
